Product Description

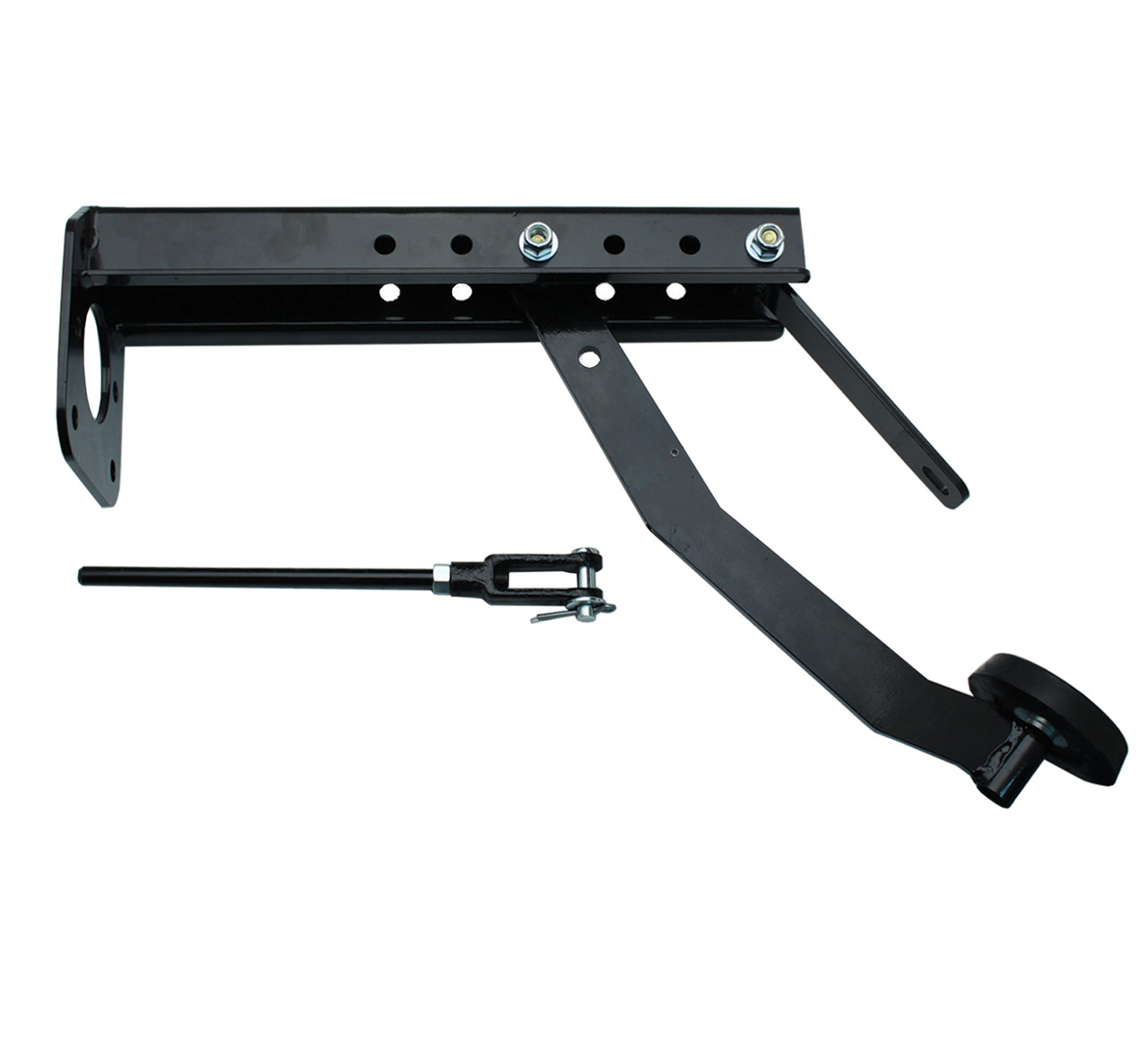

Mounts under the dash and completely adjustable. This requires some fabrication skills to install, as each vehicle is a little different in spacing and room under the dash.
- Laser cut and powder coated black
- Works with manual or power brakes!
- Adjusts from the firewall.
- This is designed for the booster to bolt directly to the firewall plate, no using booster bracket.
- Includes Pedal Pad.
- 3"3/8" Square bolt pattern for universal booster (Power)
- 3" 3/8 center to center bolt holes for master cylinder (Manual)
- Pedal pivot point at 7", 8.5", 10", 11.5", or 13" from the firewall
- 14" overall Length
For automatics only.
